5W UHF CB Two-Way Radio
Stay connected with reliable long-range communication using our rugged 5W UHF CB Transceiver. Designed for demanding environments including construction sites, security operations, event management, farming, warehouses, festivals, and outdoor activities, this professional-grade radio provides clear and dependable communication when it matters most.
With support for up to 199 programmable channels, individual calling, group calling, and all-call functionality, this versatile UHF radio is ideal for teams that need instant communication across large sites and venues. The powerful 5W transmission output delivers excellent coverage, while advanced features such as VOX hands-free operation, emergency alarm functions, voice recording, scrambler security, and noise reduction help ensure effective communication in busy environments.
Built to withstand harsh conditions, the radio features an IP67 waterproof and dustproof rating, making it suitable for outdoor events, construction projects, security patrols, agricultural applications, and industrial workplaces. The included rechargeable lithium-ion battery provides extended operating time, while the charging dock allows for convenient recharging between shifts.
Whether you're managing a corporate event, coordinating a festival, overseeing a construction site, or running security operations.
Features
- 5W / 1W selectable transmit power
- Up to 199 programmable channels
- Individual, group and all-call functions
- VOX hands-free operation
- Voice recording capability
- Emergency alarm function
- CTCSS/DCS encode and decode
- Scrambler for enhanced privacy
- Compander audio enhancement
- Remote Kill, Stun, Activate and Revive signalling
- Wide and Narrow bandwidth modes (12.5kHz / 25kHz)
- Busy Channel Lock
- Adjustable squelch levels
- Time-Out Timer (TOT)
- IP67 waterproof and dustproof rating
- Optional vibration alert
- Optional noise cancelling
Specifications
- Frequency Range: 136-174MHz / 400-480MHz
- Output Power: 5W / 1W
- Channel Capacity: 199 Channels
- Waterproof Rating: IP67
- Hidden Display Design

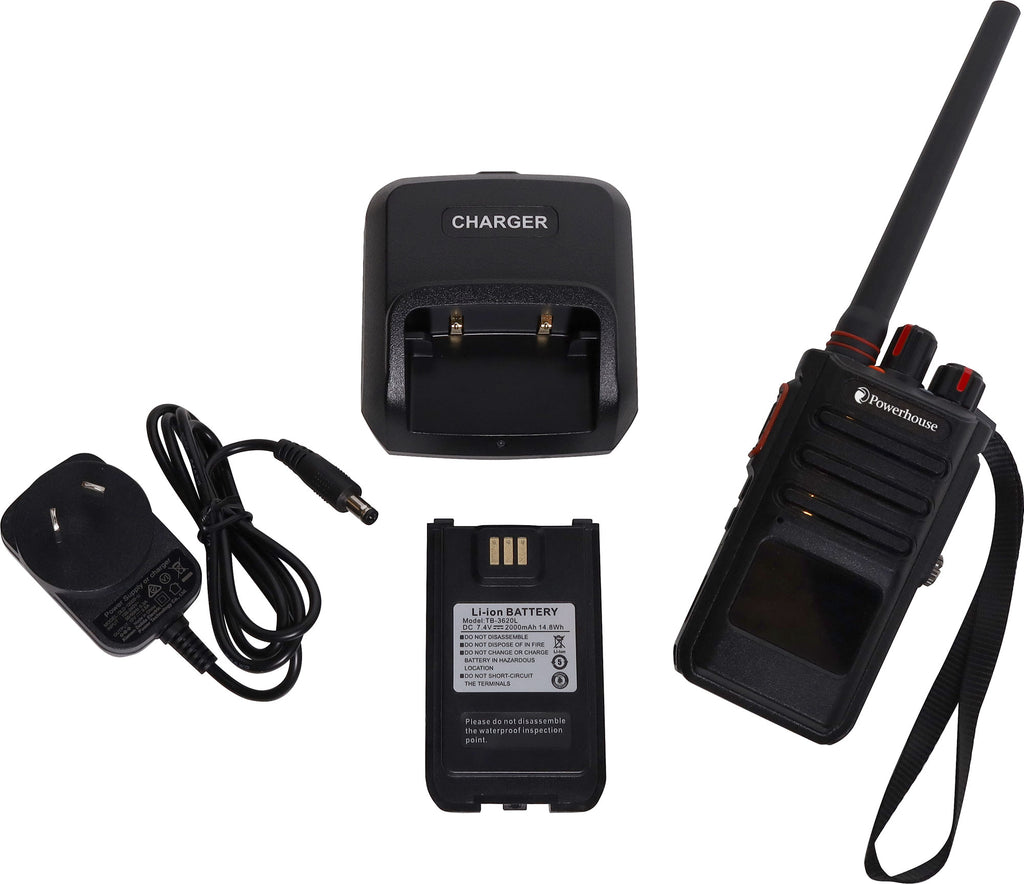

What's Included
- UHF Transceiver
- Rechargeable Li-ion Battery
- Charging Dock
- Power Supply
- Antenna
- Wrist Strap
- General
- Frequency Range: 136-174MHz/400-480MHz
- Antenna: High Gain Antenna
- Frequency Stability: ±2.5ppm
- Memory Channel: 199 Channels
- Working voltage: DC 7.4V
- Antenna Impedance: 50Ω
- Operating Mode: different-frequency simplex or same-frequency simplex
- Dimensions: 116 x 61 x 38mm
- Li-in Battery Capacity: 2000MAH or 1500MAH (Type-c)
- Transmitter
- RF power: 5W
- Modulate Mode: F3E
- Max.Freq.Deviation: ≤5KHz
- Remain Wave Radiation: ≤60db
- Transmitting Current: ≤1000mah
- Receiver
- Sensitivity: ＜0.20uV (12dB SINAD)
- Squelch Sensitivity: ＜0.20uV
- Intermodulation interference: 50db
- Audio Power output: 500mW
- Receiving Current: ≤100mh
- Squelch Standby: 20ma
Warranty : 3 Years
